JUYI N Channel Super Trench Power MOSFET With Fast Switching And Reverse Body Recovery

Brand Name : JUYI

Model Number : JY11M

Place of Origin : China

MOQ : 5 pcs

Price : Negotiable

Payment Terms : L/C, T/T，Paypal

Supply Ability : 1000sets/day

Delivery Time : 5-8 working days

Packaging Details : PE bag+ carton

Contact Now

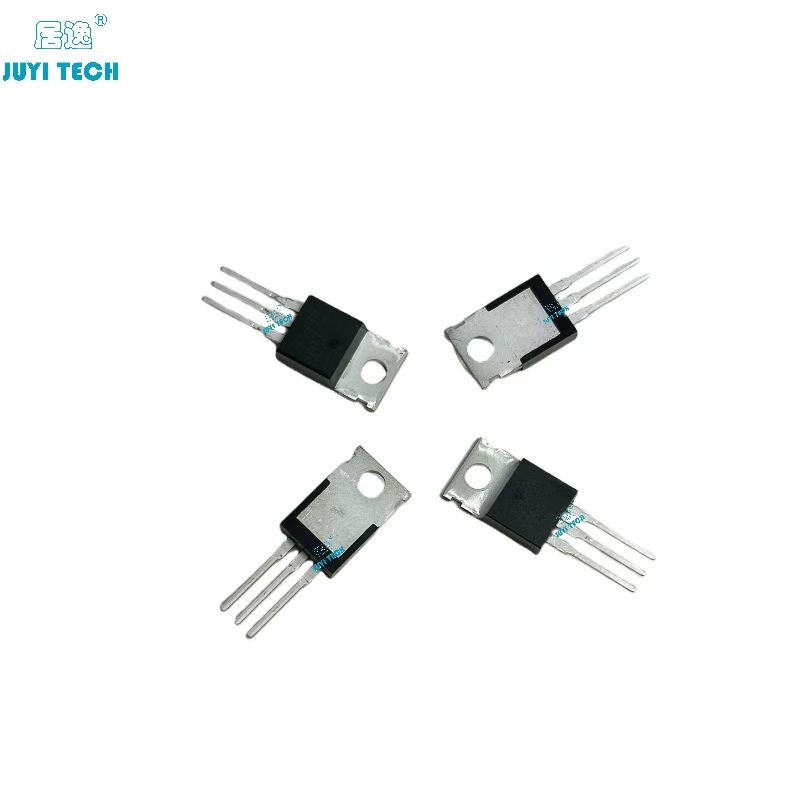

JUYI N Channel Super Trench Power MOSFET with fast switching and reverse body recovery



JUYI N Channel Super Trench Power MOSFET With Fast Switching And Reverse Body Recovery



GENERAL DESCRIPTION
The product utilizes the latest super trench processing techniques to achieve the high cell density and reduces the on-resistance with high repetitive avalanche rating. These features combine to make this design an extremely efficient and reliable device for use in power switching application and a wide variety of other applications.

FEATURES
● 100V/155A, RDS(ON) =3.5mΩ@VGS=10V(Typical)
● Fast switching and reverse body recovery
● Fully characterized avalanche voltage and current
● Excellent package for good heat dissipation

APPLICATIONS
● DC/DC converters
● Hard switched and high frequency circuits
● Synchronous rectification

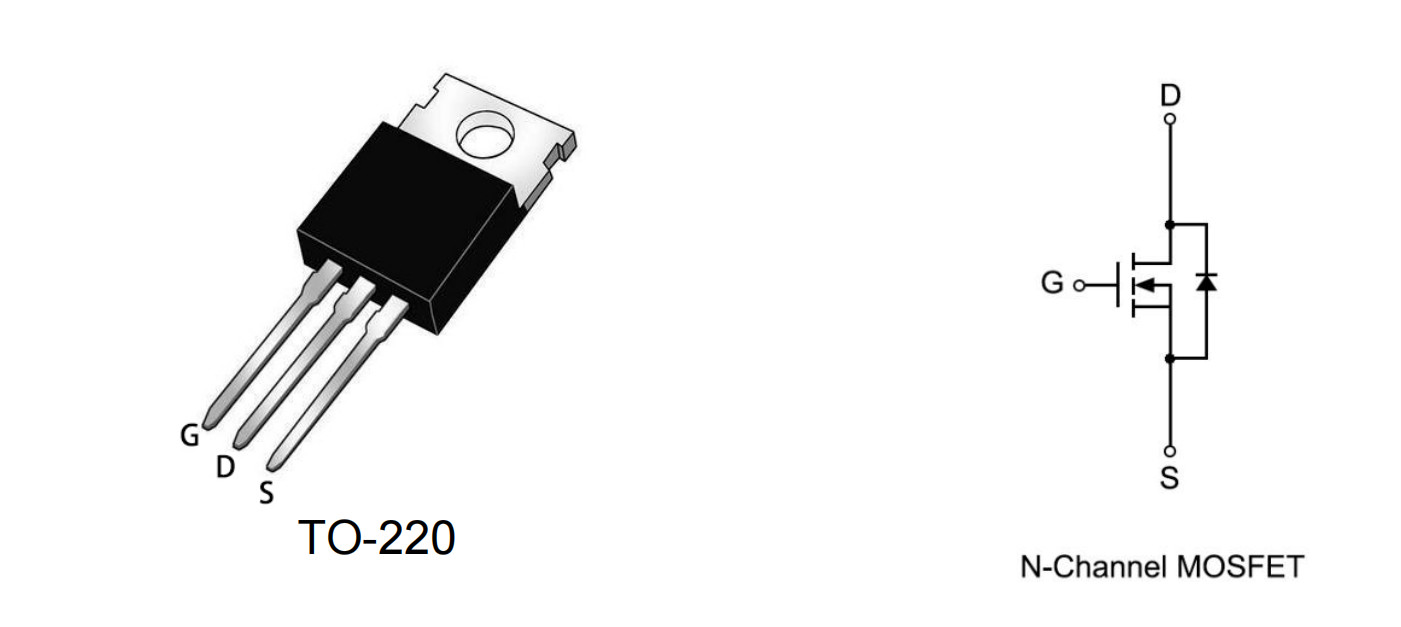

PIN DESCRIPTION

JUYI N Channel Super Trench Power MOSFET With Fast Switching And Reverse Body Recovery

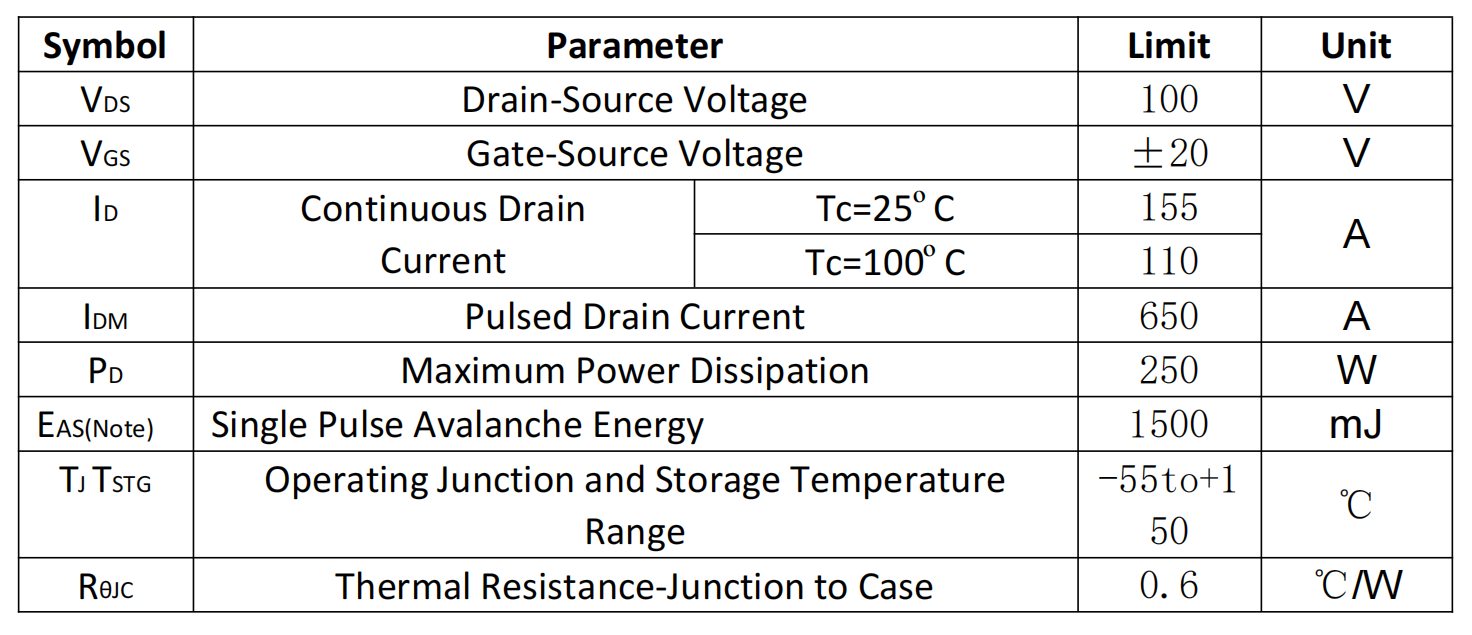

Absolute Maximum Ratings(Tc=25ºC Unless Otherwise Noted)
JUYI N Channel Super Trench Power MOSFET With Fast Switching And Reverse Body Recovery

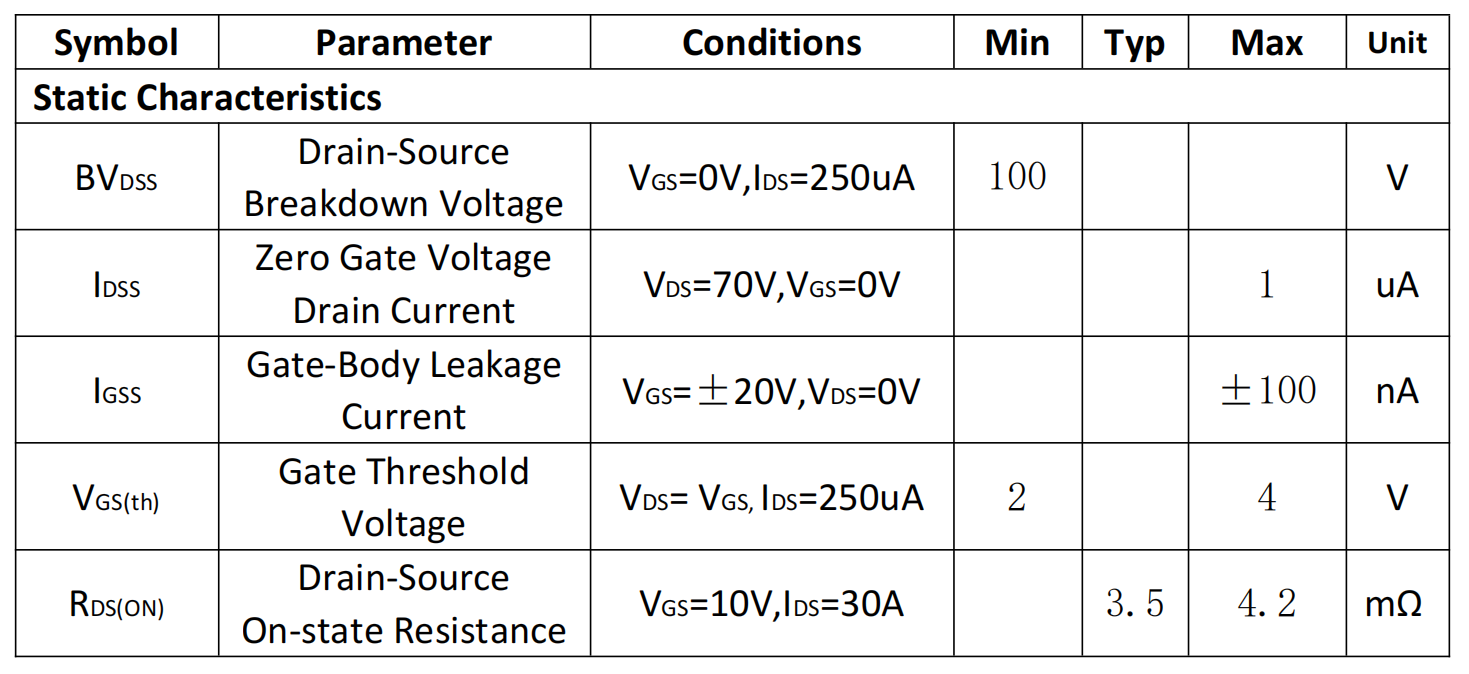

Electrical Characteristics(Ta=25ºC Unless Otherwise Noted)

JUYI N Channel Super Trench Power MOSFET With Fast Switching And Reverse Body Recovery

DOWNLOAD THE USER MANUAL OF JY11M
